Eco Line N-TYPE HJT Glass-Glass M108R 495-515Wp - Solar modules

LUXOR SOLAR
SOLAR MODULES
ECO LINE HJT
Eco Line N-TYPE HJT Glass-Glass M108R 495-515Wp - Solar modules

ECO Line N-TYPE HJT Glass-Glass M108 182R
UTILITY / ROOFTOP, PRIME

The 108-cell solar module with PID and LID free M10R wafer N-Type HJT cells impresses with its exceptionally high power output. As a bifacial heterojunction module with LCF technology, it excels in minimizing power losses and exhibits outstanding temperature performance.

Compared to conventional solar modules, this N-Type HJT module generates per surface area:
+ 3 percent more power plus another
+ 8 percent additional output over a 30-year running time

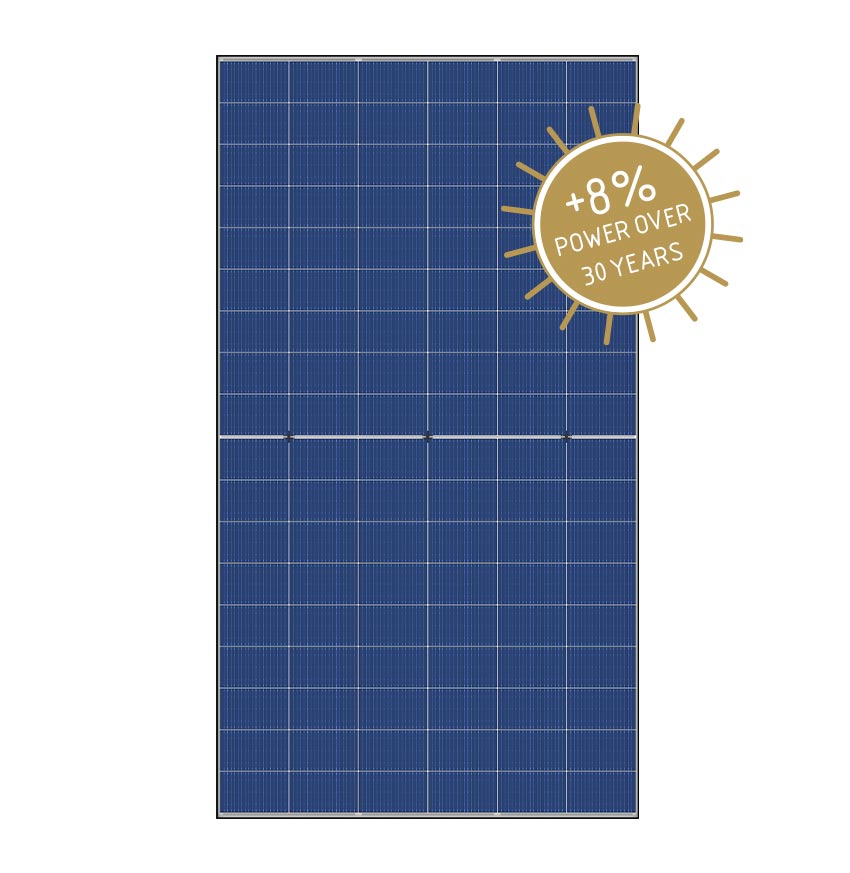

Eco Line M108 N-TYPE HJT GG | 495 - 515Wp

108-cell glass-glass solar module with 182 mm x 105 mm N-TYPE HJT cells

The high-performance, bifacial N-Type HJT module is distinguished by its exceptional power output. As a "more-yield module" in glass-glass construction, it ensures maximum durability and is backed by a 30-year product and performance guarantee. It is ideally suited for use in large-scale installations and commercial applications.

Type	108-HJT Glass-Glass Modul
Power P_MPP	from 495 to 515 Wp
Temperature coefficient	-0,26 %/K
Efficiency	bis zu 22.96 %
Size	1960 mm × 1134 mm × 30 mm
Weight	27.6 kg
