Eco Line N-Type TOPCon NON REFLECT M108 420 - 440 Wp - Solar modules

Eco Line N-Type TOPCon NON-REFLECT
Low-glare high-performance module

Luxor Solar has developed the special NON-Reflect module to counteract the negative effects of light immissions and to fulfil the requirements of the Federal immission control act (BImSchG). The low-reflection solar module is particularly suitable for use in "areas worthy of protection" like near airports, motorways, railway lines and residential locations. 
The use of special low-glare glass means that the NON-Reflect solar modules have a significantly lower degree of reflection than standard modules. Tests by independent specialist institutes confirm a reduction in glare many times over, depending on the installation situation, and certify that the modules fall well below the legal limits for light immissions.

The NON-Reflect solar module is therefore ideal for the applications mentioned and is often the only option for realizing a solar installation in an economically viable location despite strict regulations. 

Luxor Solar combines the greatly reduced glare effect with the highly efficient N-Type TOPCon technology in the ECO LINE N-TYPE TOPCON NON-REFLECT. The 108-cell module (half-cell M10) from EU production achieves a nominal output of up to 440 Wp and an efficiency of up to 22.86 %. It sets industry standards in the low-glare modules class.. 

Eco Line N-Type TOPCon NON REFLECT M108

Low glare module with 108 N-Type TOPCon cells.

The 108-cell monofacial N-TYPE TOPCon solar module impresses with its very high wattage. As a NON-REFLECT module, it has been specially developed and designed for low-reflection requirements.

Type 108 N-Type TOPCon
Rated power 420 up to 440 Wp
Temperature coefficient PMPP -0.3 %/K
Wirkungsgrad Up to 22.31 %
Dimensions 1722 mm × 1134 mm × 30 mm
Weight 21.5 kg

  Data sheet & further performance classes >>

Eco Line N-Type TOPCon NON-REFLECT M108  | Bis zu 440Wp

High-performance and reliable HJT solar modules in high-end quality

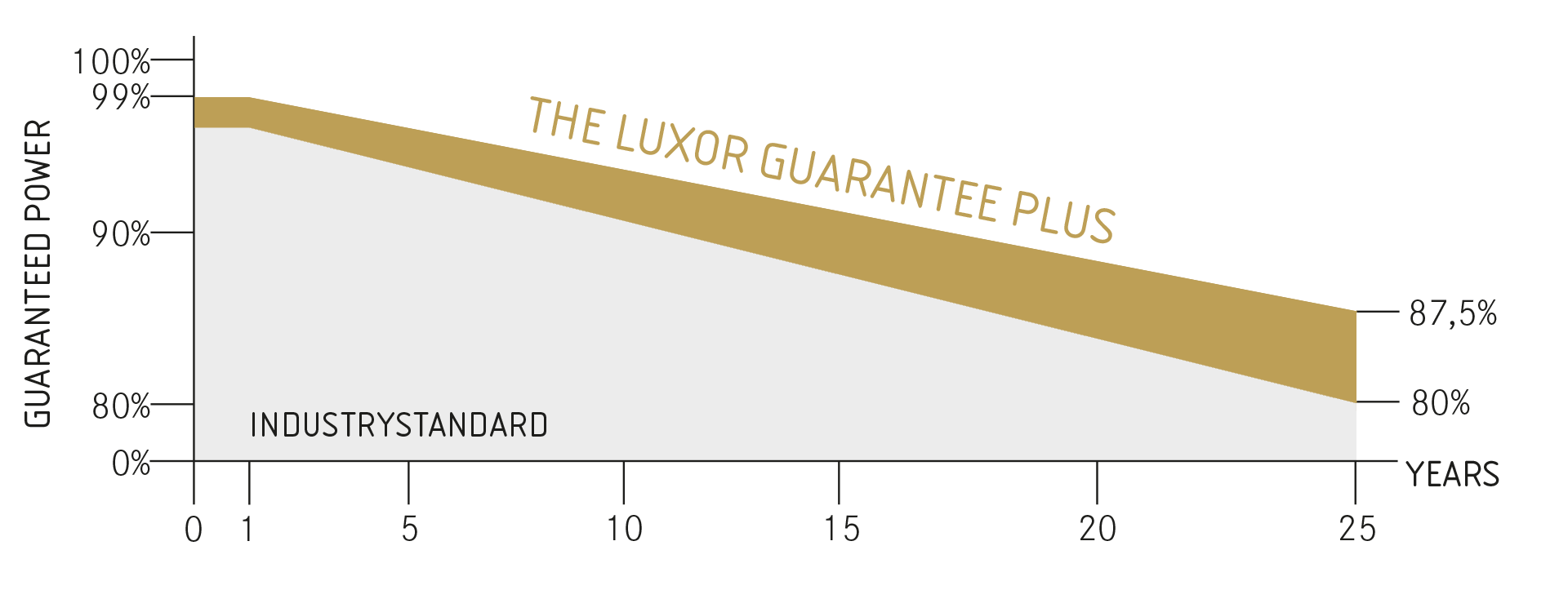

Guarantee grafic Eco Line N-TYPE TOPCon NON-REFELCT

15 Years
product guarantee

linear
performance guarantee

Eco Line NON-REFLECT modules are ideal for pv-plants at

Motorways
99%
Airports
97%
Railway lines
97%
Residential locations
92%
