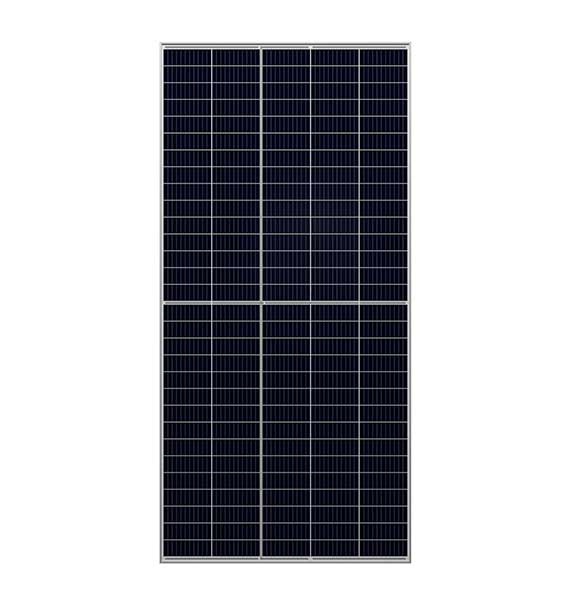

ECO Line Triple-Cell M150
The performance allrounder
The new 150-cell solar module with monocrystalline 210 mm x 70 mm triple-cells, impresses with its compact dimensions of 2185 mm x 1098 mm. The triple-cell architecture increases the power output of the solar module by lowering resistive power and increasing total reflection. High-quality solar cells with the highest efficiency and the best possible low light behaviour ensures the best energy output. And all this with plus tolerances of 0 to 6,49Wp.
Further high-end components include an especially durable plug-in connection guaranteeing the best power contact under all conditions and the hollow-section frame made of anodized aluminium is compatible with every assembly system as well as torsional stiff and corrosion free. Manufactured according to the highest standards, each Luxor Solar module is marked by a special level of durability and reliability.
Eco Line M150 Triple-Cell | Up to 515Wp
150-cell monocrystalline solar module in triple-cell architecture.
This compact, monocrystalline solar module in triple-cell architecture impresses with its optimized design/ratio of power to size and its efficiency of up to 21,3%. As a high-performance module, it is ideally suited for use on industrial and commercial power plants.
| Type | 150 monocrystalline triple cells |
| Rated power PMPP | 495 up to 515 Wp |
| Temperature coefficient PMPP | -0,36 %/K |
| Efficiency | up to 21.3 % |
| Dimensions L/W/H |
2185 mm × 1098 mm × 35 mm |
| Weight | 26.3 kg |
High-performance and reliable solar modules in high-end quality
product
guarantee
linear performance
lguarantee
