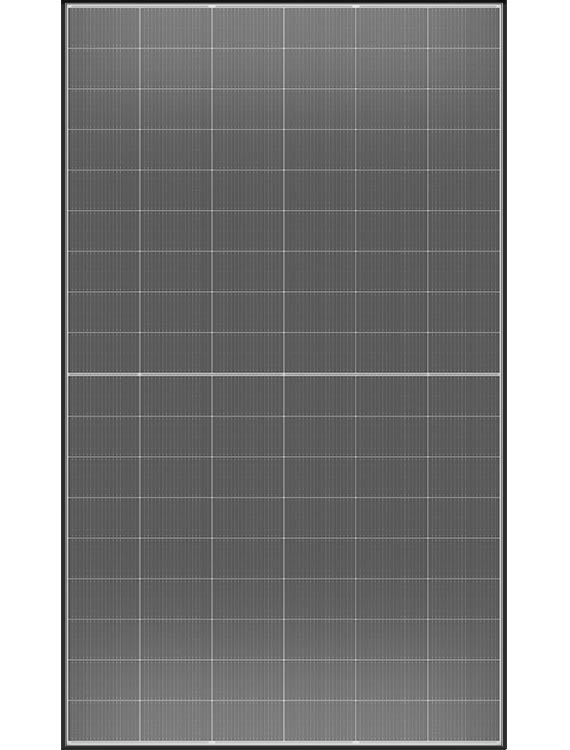

ECO LINE PRO NON-REFLECT 445-465W
TOPCON BLACK WHITE
GLASS-GLASS, BIFACIAL, 1762MM X 1134MM
-
NON-REFLECT: SPECIAL GLASS FOR LEAST REFLECTION
-
APPLICATIONS: NEAR AIRPORTS, MOTORWAYS, PROTECTED AREAS
-
DOUBLE GLASS: HIGHER MECHANICAL AND THERMAL STABILITY
-
POWERFUL N-Type TOPCON CELLS
TECHNICAL DATA
| Type | 108 N-Type TOPCon Cells |
| Rated power PMPP | 445-465 Wp |
| Temperature coefficient | - 0.29 %/K |
| Efficiency at STC up to | 23.60 % |
| Dimensions | 1762 mm × 1134 mm × 30 mm |
| Max. pressure/tensile load | 6000 Pa / 4000 Pa |
| Hail test | ∅ 45 mm | 30.7 m/s ≙ 110.5 km/h |
| Weight | 24.5 Kg |
DOWNLOADS
Datasheet PDF | CE Declaration PDF | Warranty Declaration | Mounting Instructions PDF
WARRANTIES
Product Guarantee
Linear Performance
Guarantee
