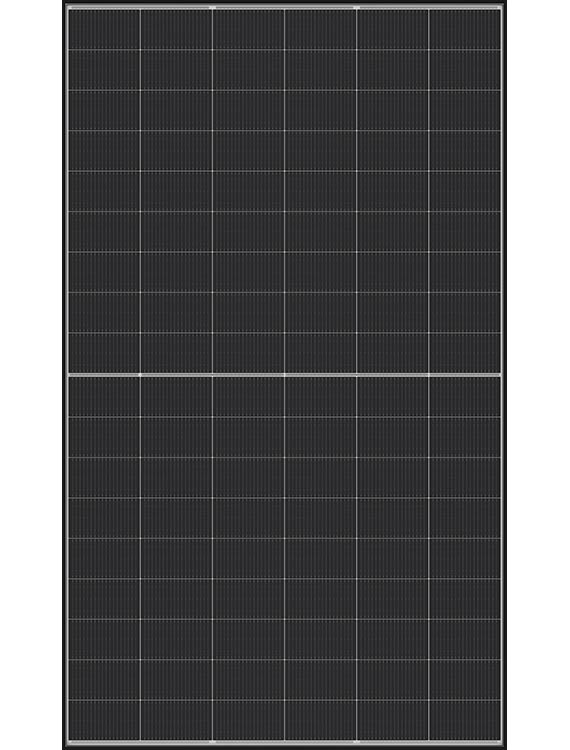

ECO LINE PRO 450-470W
TOPCON BLACK WHITE
GLASS-GLASS, 1762MM X 1134MM
-
POWERFUL N-TYPE TOPCON CELLS
-
DOUBLE GLASS: HIGHER MECHANICAL AND THERMAL STABILITY
-
REDUCTION OF BALANCE-OF-SYSTEM-COSTS THROUGH HIGHER PERFORMANCE PER MODULE
-
APPLICATION: WHEREVER LONGEVITY AND ROBUSTNESS ARE REQUIRED
TECHNICAL DATA
| Type | 108 N-Type TOPCon Cells |
| Rated power PMPP | 450-470 Wp |
| Temperature coefficient | - 0.29 %/K |
| Efficiency at STC up to | 23.85 % |
| Dimensions | 1762 mm × 1134 mm × 30 mm |
| Max. pressure/tensile load | 6000 Pa / 4000 Pa |
| Hail test | ∅ 45 mm | 30.7 m/s ≙ 110.5 km/h |
| Weight | 24 Kg |
DOWNLOADS
Datasheet PDF | CE Declaration PDF | Warranty Declaration | Mounting Instructions PDF
WARRANTIES
Product Guarantee
Linear Performance
Guarantee
