LUXOR SOLAR
ECO-LINE HALF-CELL

up to 420Wp
100%

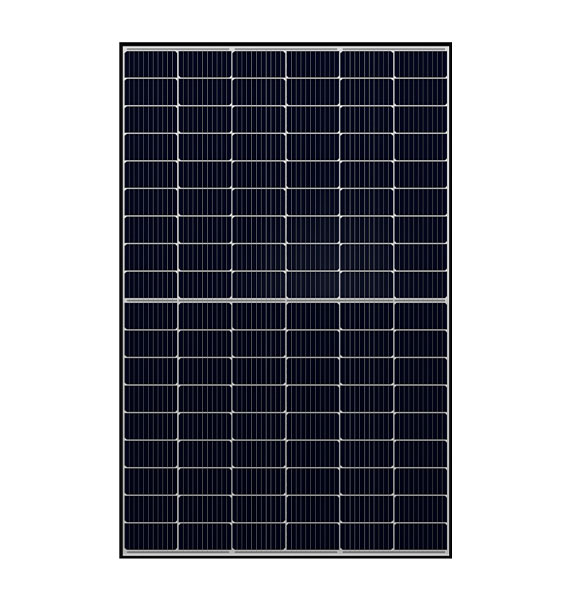

Eco Line Half-Cell M108 400-420Wp - Solar module

ECO Line Half-Cell M108
The monocrystalline allrounder

The new 108-cell solar module with monocrystalline 182 mm x 91 mm half-cells, impresses with its compact dimensions of 1724 mm x 1134 mm. The half-cell architecture increases the power output of the solar module by lowering resistive power and increasing total reflection. High-quality solar cells with the highest efficiency and the best possible low light behaviour ensures the best energy output. And all this with plus tolerances of 0 to 6,49Wp.

Further high-end components include an especially durable plug-in connection guaranteeing the best power contact under all conditions and the hollow-section frame made of anodized aluminium is compatible with every assembly system as well as torsional stiff and corrosion free. Manufactured according to the highest standards, each Luxor Solar module is marked by a special level of durability and reliability.

Eco Line M108 Half-Cell | Up to 420Wp

108-cell monocrystalline solar module in half-cell architecture.

This compact, monocrystalline solar module in half-cell architecture impresses with its optimized design/ratio of power to size and its efficiency of up to 21,3%. As a high-performance module, it is ideally suited for use on residential and commercial buildings.

Type 108 monocrystalline half cells
Rated power PMPP 400 up to 420 Wp
Temperature coefficient PMPP -0,36 %/K
Efficiency up to 21.3 %
Dimensions L/W/H
1724 mm × 1134 mm × 35 mm
Weight 22 kg

  Data sheet BLACK-FRAME | Data sheet SILVER-FRAME

ECO Line M108 Half-Cell | Bis zu 410Wp

High-performance and reliable solar modules in high-end quality

Warranty - ECO Line Half-Cell Solar modules

product
guarantee

linear performance
lguarantee

ECO Line Half-Cell solar modules ideal for

RESIDENTIAL PLANTS
99%
COMMERCIAL PLANTS
97%
INDUSTRIAL PLANTS
92%
OFFGRID PV-SYSTEMS
27%

LUXOR SOLAR-Module - Glass/Glass - +SMART - Frameless

ECO LINE GLASS/GLASS Solar modules

ECO LINE GLASS/GLASS

GLASS/GLASS Solar-Modules
Optimized by Solaredge/Tigo

LUXOR SOLAR ECO LINE +SMART

ECO LINE +SMART

Poly- & monocrystalline, 48- 60- 72-cells
Optimized by Solaredge/Tigo

LUXOR SOLAR ECO LINE Glass-glass Bifacial

ECO LINE GG Bifacial

FRAMELESS & BLACK-FRAME
Monocrystalline 60- &120-cells
